Brinno BCC100 Time Lapse Construction Camera Bundle


Brinno BCC100 Time Lapse Construction Camera Bundle

0.01

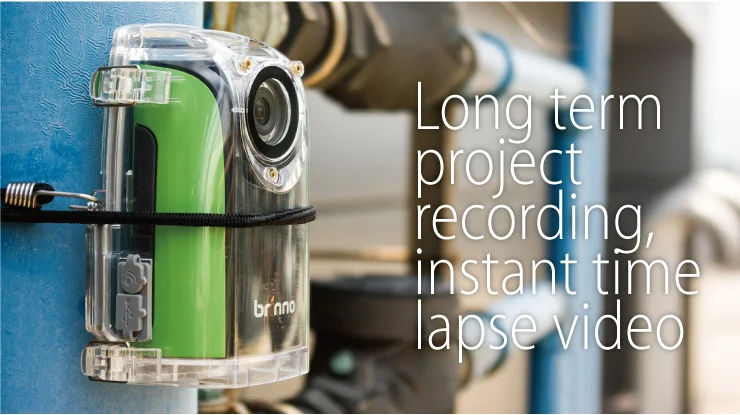

Time lapse camera, weather resistant housing and bracket bundle. Brinno's bestselling construction camera kit. Battery life is what sets this camera apart from any other on the market. Four AA batteries will last up to six months with a typical construction interval. For long term, unattended recording this is the camera to choose.

  • 1.3MP 1/4" CMOS Image Sensor
  • HD 1280 x 720 Time Lapse Videos
  • 18mm Aspherical Glass Lens (35mm Equiv)
  • Fast f/1.2 Aperture
  • 140-deg Angle of View, 120-deg Tilt
  • Time Interval: .3 Sec (ASAP) - 24 hr
  • 1.44" LCD Viewfinder
  • Weather-Resistant Housing and Wall Mount
  • Includes 4GB SDHC Card, 4 AA Batteries
Add To Cart

Construction time lapse example submitted from a Brinno user.


Features


tlc200f1.2 Instant video tlc200f1.2 LCD viewfinder
TLC200 f1.2 captures and
converts thousands of photos into a Time Lapse video instantly
The 1.44” LCD screen allows you to frame your subject simply
tlc200f1.2 Power Saving tlc200f1.2 Low Light
Set at ASAP time interval,
270,000 frames can be captured
Better low light recording and sharper images
tlc200f1.2 Wide Angle view tlc200f1.2 Weather Resistant
140˚ field of view. A wider area is captured creating panoramic images of your project Records any project, indoors or

Specifications


Camera
Model BCC100
LCD Screen
1.44" TFT LCD
Rotate Lens
120°
Waterproof IP X4 (In use with Weather Resistant Housing (ATH110))
Capture Mode
Time Lapse
Various time interval
Stop Motion
Optional, (In use with Shutter Line (ATS110))
Optics Lens
Aperture
F1.2
Lens type
Aspherical Lens (glass lens)
Field of View
112° (720P)
Focal Length
18 mm (35mm equivalent)
Focus Distance 30 cm (Minimum)
Recording
Time Lapse Video Format: AVI
Resolution: 1280x 720, 640x 480
Still Image Format: JPEG (only for using Shutter Line)
Resolution: 1280x 720, 640x 480
Memory Storage SD Card (Supported up to 32 GB)
Time Interval
ASAP
Captures 1~ 4 photos per second
Custom From 1 second to 24 hours
Power
Power source Battery: 4 AA Batteries
DC IN: 5V (Micro USB connector)
Battery Life Captures 270,000 photos at ASAP time interval,
Dimension
Size (DxWxH)
64x 46x 106 mm
Weight
120 g (without batteries)
Color Green/ Black

Battery Life


Time Interval Frames Captured Est. Battery Life
ASAP
270,000
2.2 days
1 second
245,000
2.8 days
5 seconds
228,000
13 days
10 seconds
197,800
23 days
20 seconds
137,400
32 days
30 seconds
105,200
36 days
1 Minute
61,800
43 days
5 Minutes
14,300
50 days
10 Minutes
9,180
64 days
30 Minutes
3,700
78 days
1 Hour
1,800
4 Hours
460
24 Hours
78

Brinno Time Lapse Camera Model Comparison


TLC200 TLC200 f1.2 TLC200 Pro TLC120
Model TLC200 TLC200 f1.2 (BCC100) TLC200 Pro (BCC200) TLC120
Color White/Green Black/Green Black TLC120 - Orange/Black
TLC120A - Black
Viewfinder 1.44" LCD 1.44" LCD 1.44" LCD App
Image sensor 1.3 MP 1.3 MP 1.3 MP HDR 1.3 MP HDR
Resolution 1280 x 720 (16:9) 1280 x 720 (16:9) 1280 x 720 (16:9) 1280 x 720 (16:9)
Aperture f/2.8 f/1.2 f/2.0 f/2.0
Focal length (mm) 36 18 (35mm equivalent) 19 (35mm equivalent) 19 (35mm equivalent)
Field of view 59° 112° (720P) 112° (720P) 112° (720P)
Aspherical lens Check Check Check
Interchangeable CS mount lens Check
HDR video Check Check
Scene setting Check Check
White balance Check Check
Micro USB output Check Check
Webcam function Check Check
Wi-Fi       Wi-Fi (802.11 b/g)
Bluetooth       BLE 4.0
Brinno App       Android 4.4+/ iOS 7.0+
Extension port Check Check Check
Time interval 0.5 sec, 1 sec-24 hrs 0.5 sec, 1 sec-24 hrs 0.3 sec, 1 sec-24 hrs
Battery life 270,000 photos 270,000 photos 240,000 photos
Storage media SD/SDHC card SD/SDHC card SD/SDHC card
Media included 2GB 4GB 4GB 8GB
Maximum storage 32GB (Larger cards may work if formatted from exFAT to FAT-32)
Video format AVI
Weather resistant With optional housing ATH110 With optional housing ATH120

IPX4

Stop motion video With optional shutter release cable
Still images (JPEG, 1280 x 720) Can be extracted with the Brinno Video Player (PC only) available at the bottom of the Brinno Download Page.
Batteries required 4 AA (included) Rechargable
External power 5V micro USB
